Contact vibration · bench node · custom PCB

A laboratory pulse node, shown as it sits on the bench.

SubTerra Pulse is an engineering kit for contact-vibration studies: an integrated N05 laboratory prototype and N06 main and sensor boards. Register, request a quote, and pay the issued amount by card.

Create an account Customer portal View 3D stills

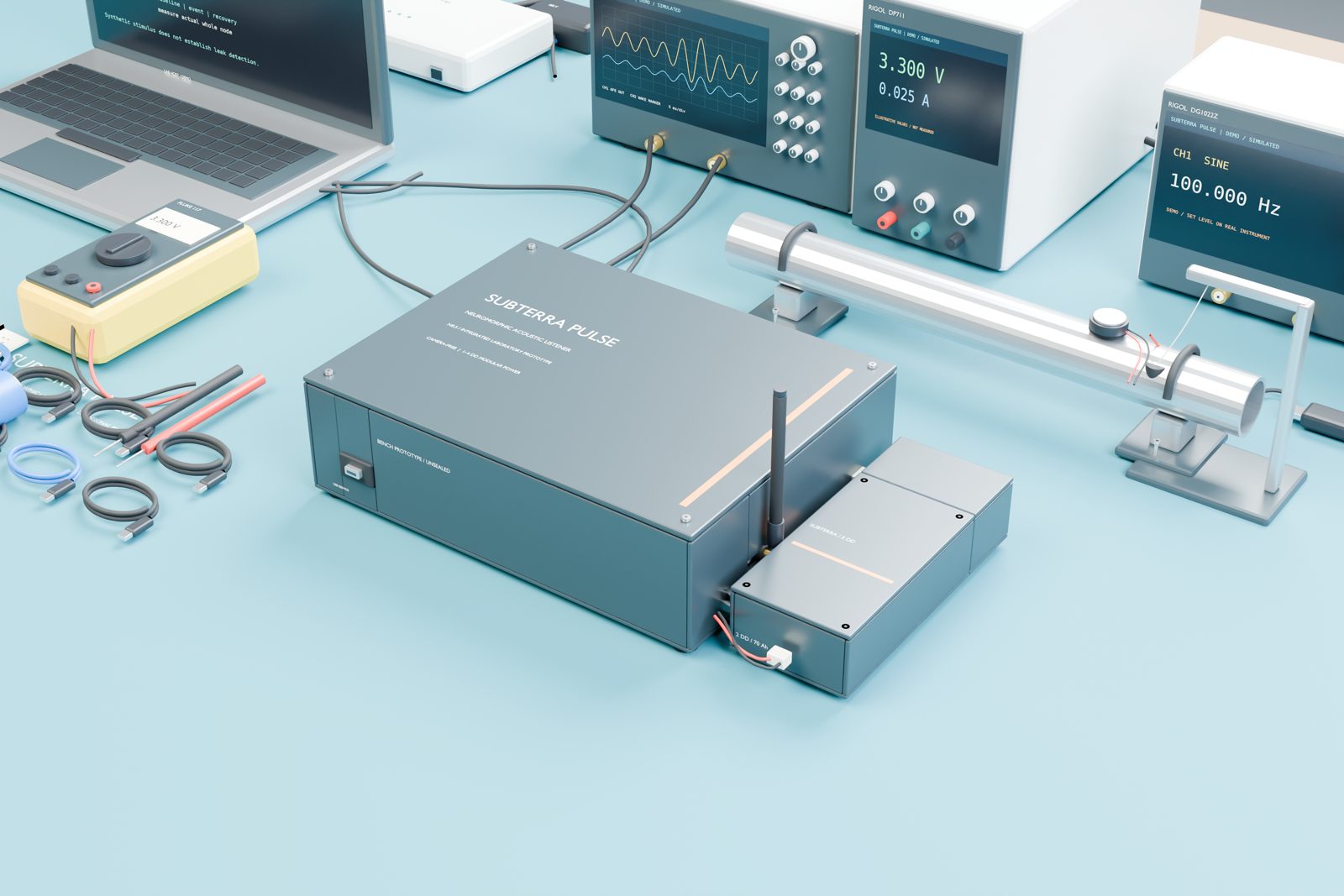

3D render of the assembled SubTerra Pulse enclosure, antenna, and battery pod on the lab bench — N05 laboratory · assembled prototype

What you can quote

Hardware on this release

Prices are set on the quote. Nothing is charged until you accept an issued quote in the portal.

N05 laboratory prototype

Integrated bench node from the N05 3D laboratory study: enclosure, BrainBoard, sensor node, and battery pod.

N06 main PCB

Custom main board, Rev A engineering review. Not a supplier-approved production release.

N06 sensor PCB

Custom sensor board, Rev A engineering review. Pair with the main PCB.

Assembly and bring-up

Bench bring-up against the N06 pin map and lab protocol. Physical boards are quoted separately.

Custom scope

Site-specific quantity, fixture, or documentation. Describe it on the quote.

3D hero stills

N05 laboratory model

Still frames from the N05 3D laboratory. The enclosure study is a proposed mechanical design, not an off-the-shelf housing.

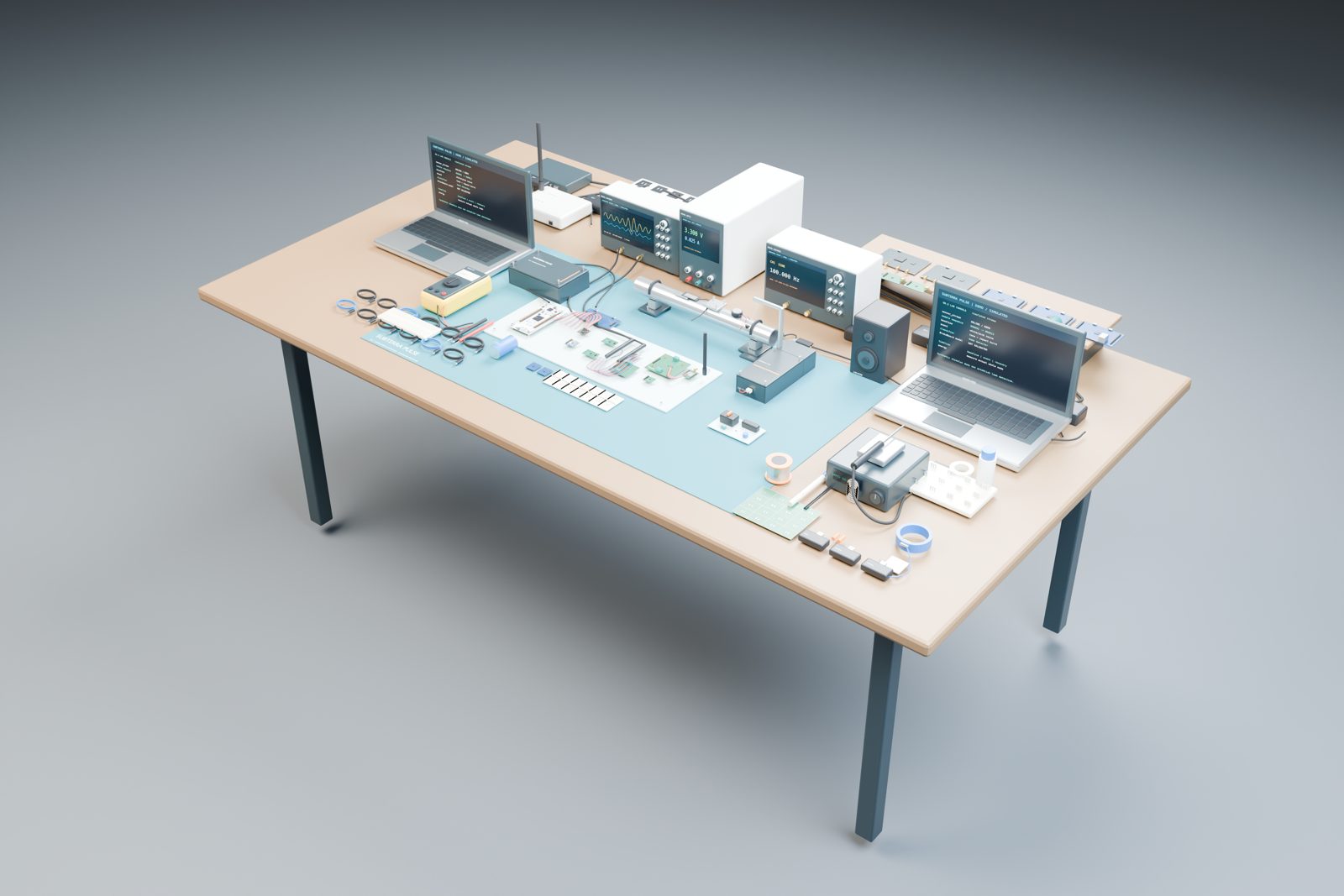

3D render of the full SubTerra Pulse laboratory bench — Laboratory

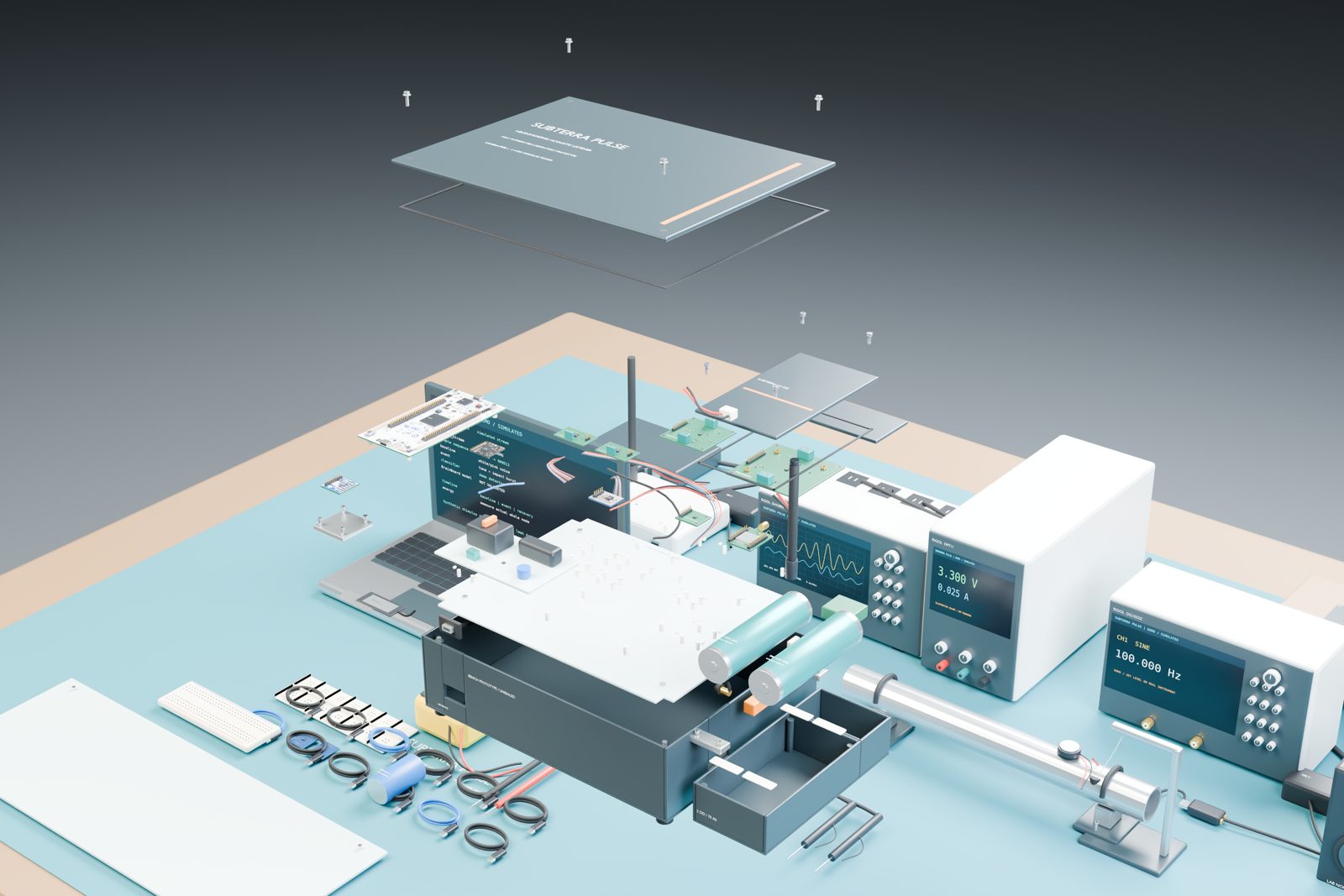

3D render of the N05 prototype with the enclosure and boards separated — Exploded

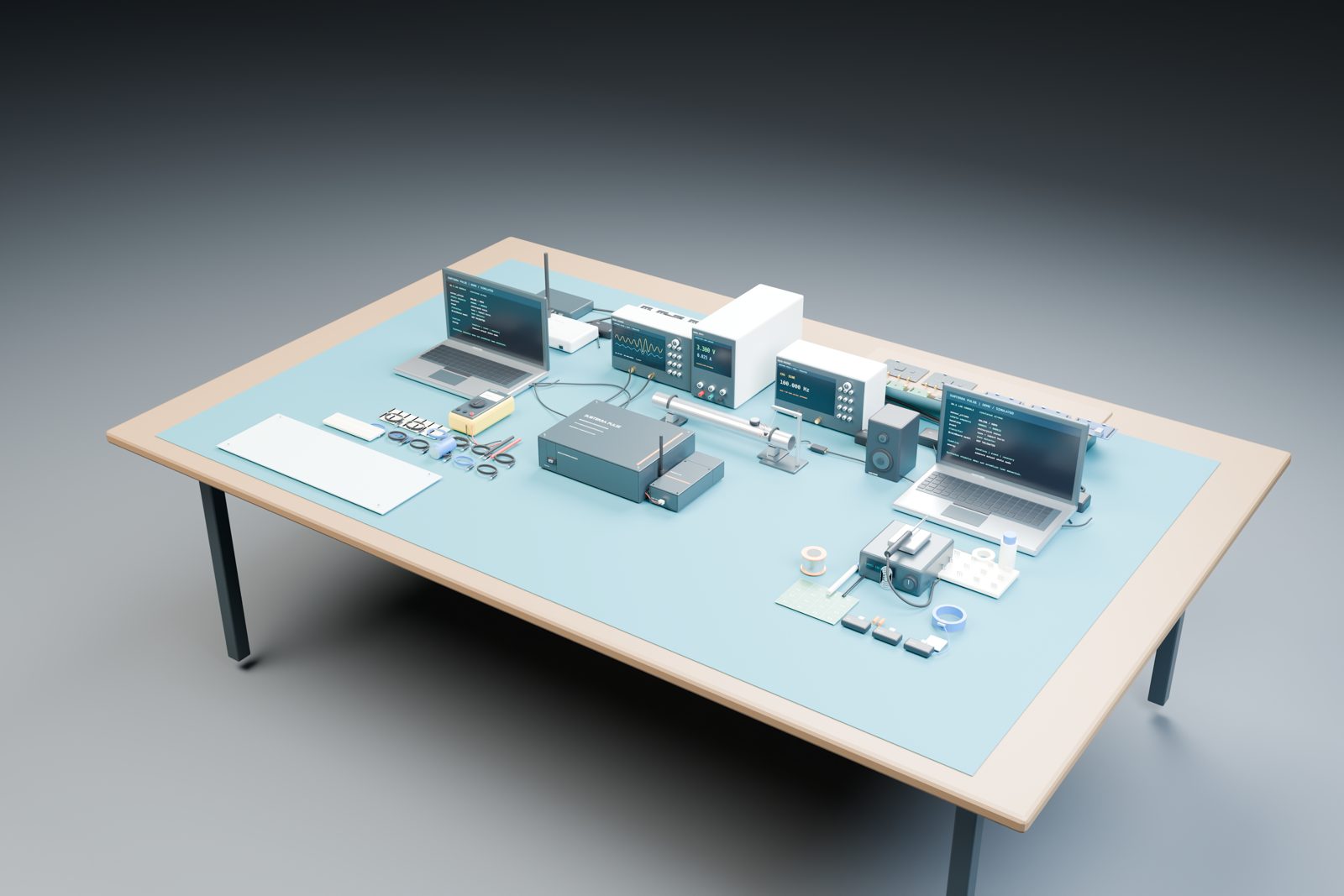

3D render of the assembled node on the laboratory bench — On the bench

N06 Rev A

Board previews

Engineering-review renders. Physical N06 boards have not been manufactured or tested from this release.

3D preview of the N06 main printed circuit board assembly — Main PCB

3D preview of the N06 sensor printed circuit board assembly — Sensor PCB

Register, then ask for a number.

The portal keeps your quotes. When a price is issued, pay that amount with Stripe Checkout.
